Wigam R134A, R1234YF And R744/CO2 A/C Leak Test Trolley With Regulator

Product Description

Wigam R134A, R1234YF And R744/CO2 A/C Leak Test Trolley With Regulator

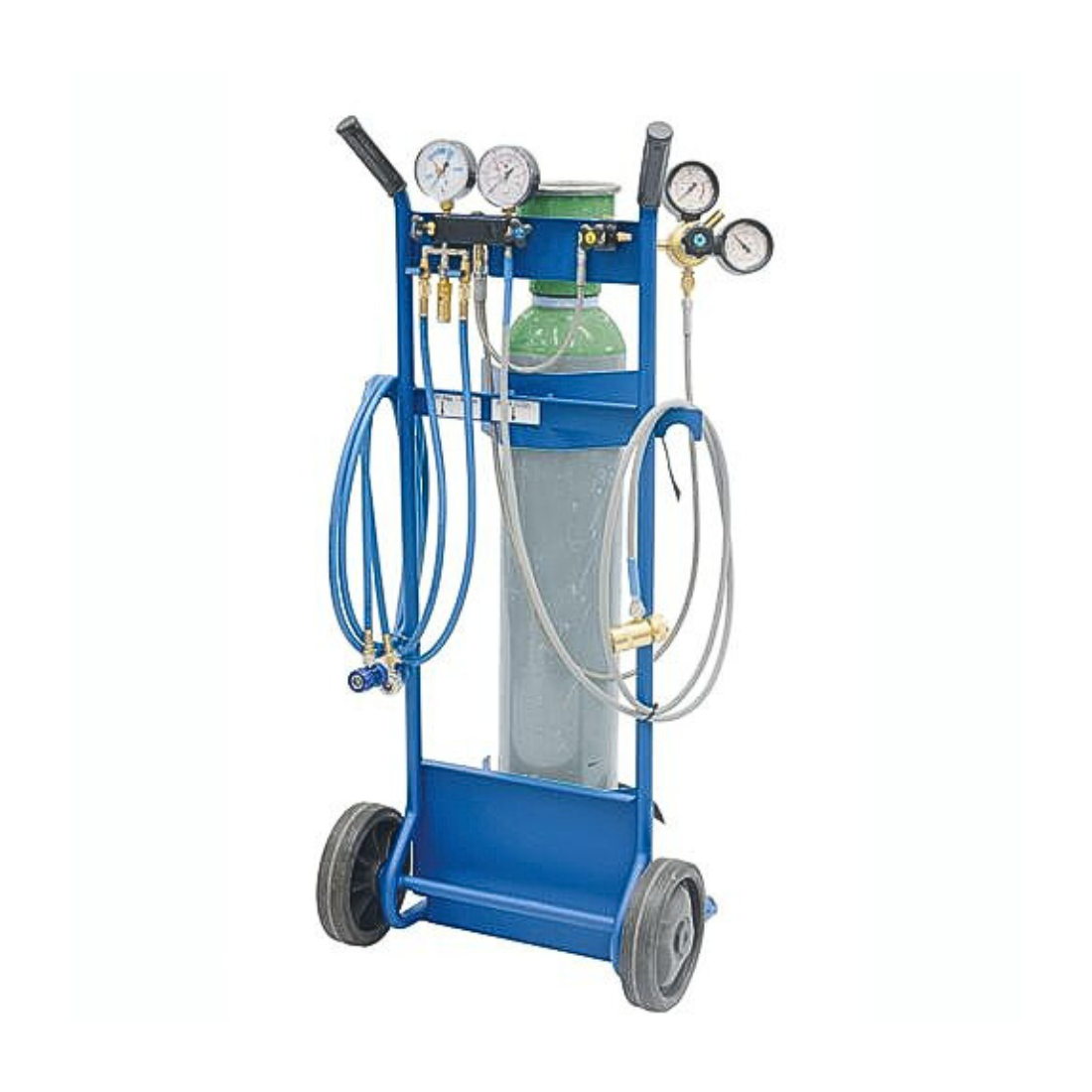

The WIGAM Leak Test Trolley offers a complete and flexible solution for the detection of leaks in the air-conditioning A/C circuits, as it is suitable to pressurize with Azoidro mixture (N2+H2) or Nitrogen (N2 ) any A/C system that uses refrigerants such as R134a, R1234yf or R744 (CO2 ).

Cylinders with a capacity of up to 20 litres can be accommodated and secured on the trolley. The cylinder pressure is then reduced by means of a specific pressure regulator, which is included with the trolley, (the regulator included is the higher pressure one also suitable for R744/CO2)

Once the compressed gas has been suitably reduced, it will feed the test manifold that is integrated into the trolley. The hoses and quick couplers allow the connection to A/C systems working with R134a, R1234yf or R744 (CO2 ).

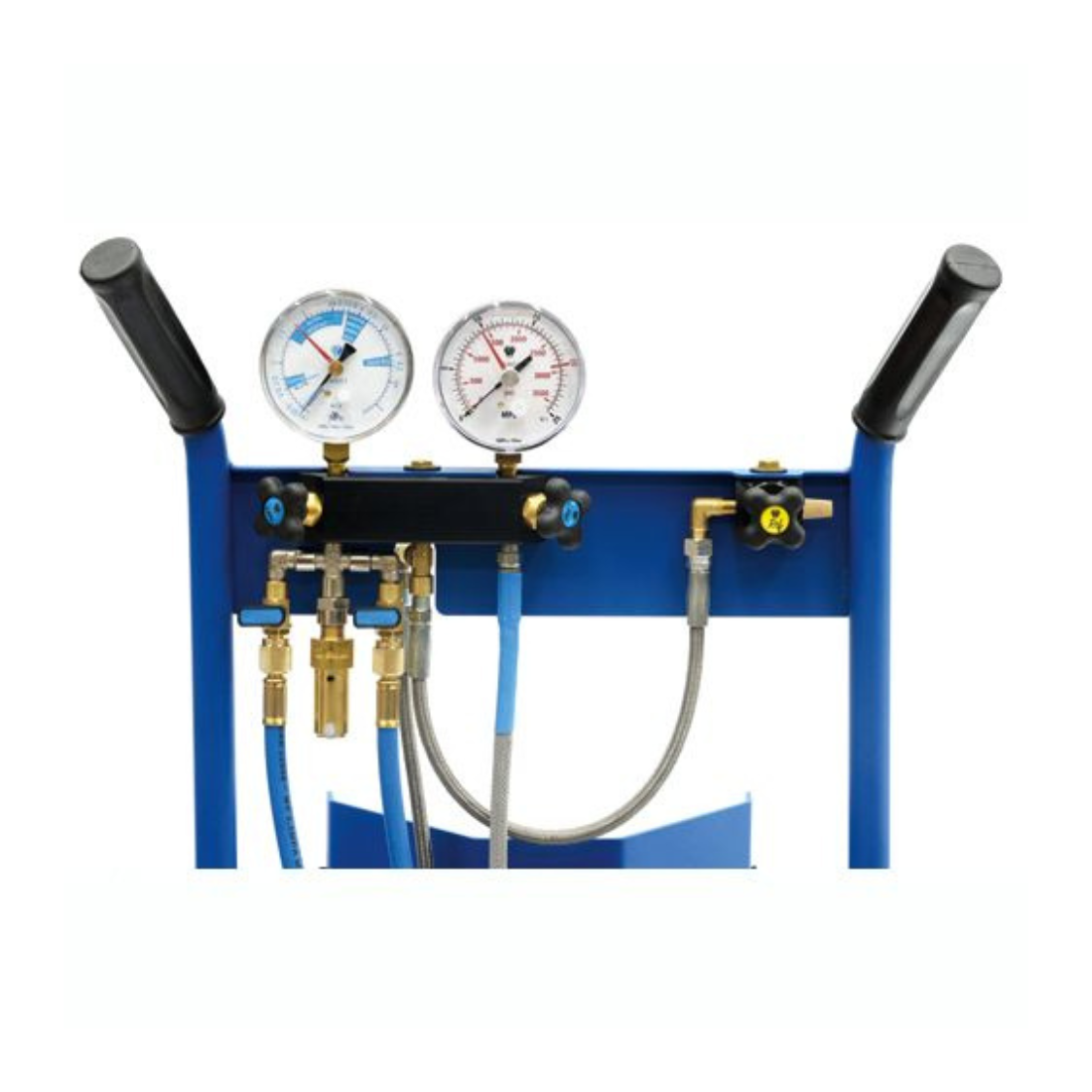

The test manifold holds the test pressure gauges for R134a/R1234yf and R744 (CO2 ), which are able to identify the decrease of pressure in the A/C system under examination. A leak detector (see VOYAGER) is then required to analyse Azoidro mixture (N2+H2) leaks promptly.

The wide range of pressures with which Leak Test Trolley can operate offers the possibility of testing all systems (including R744 systems) also with nitrogen at the most important operating pressures. The side for pressurisation of R134a and R1234yf systems is suitably protected by a safety valve, in case the pressure regulator is mistakenly set higher than the maximum suitable pressure.

Features

• Suitable for A/C systems: R134a, R1234yf, R744.
• Can carry bottles up to 20 L.
• Suitable for test with Azoidro (N2+H2) and Nitrogen (N2)
• Maximum pressure: 48 bar for R134a – R1234yf; 200 bar for R744 (CO2).
• Safety valve • Valve for the controlled release of the test pressure
• 50 bar test manifold for R134a – R1234yf, 80 mm Class 1.
• 250 bar test manifold for R744(CO2), 80 mm Class 1.
• Service hoses: R134a 2,5 m; R1234yf 2,5 m; R744 2,5 m.
• Quick couplers for R134a-R1234yf-R744 included
• Safety belts to secure the bottle
• Dimensions of the trolley: cm 114x50x45. Weight: 14,7 kg

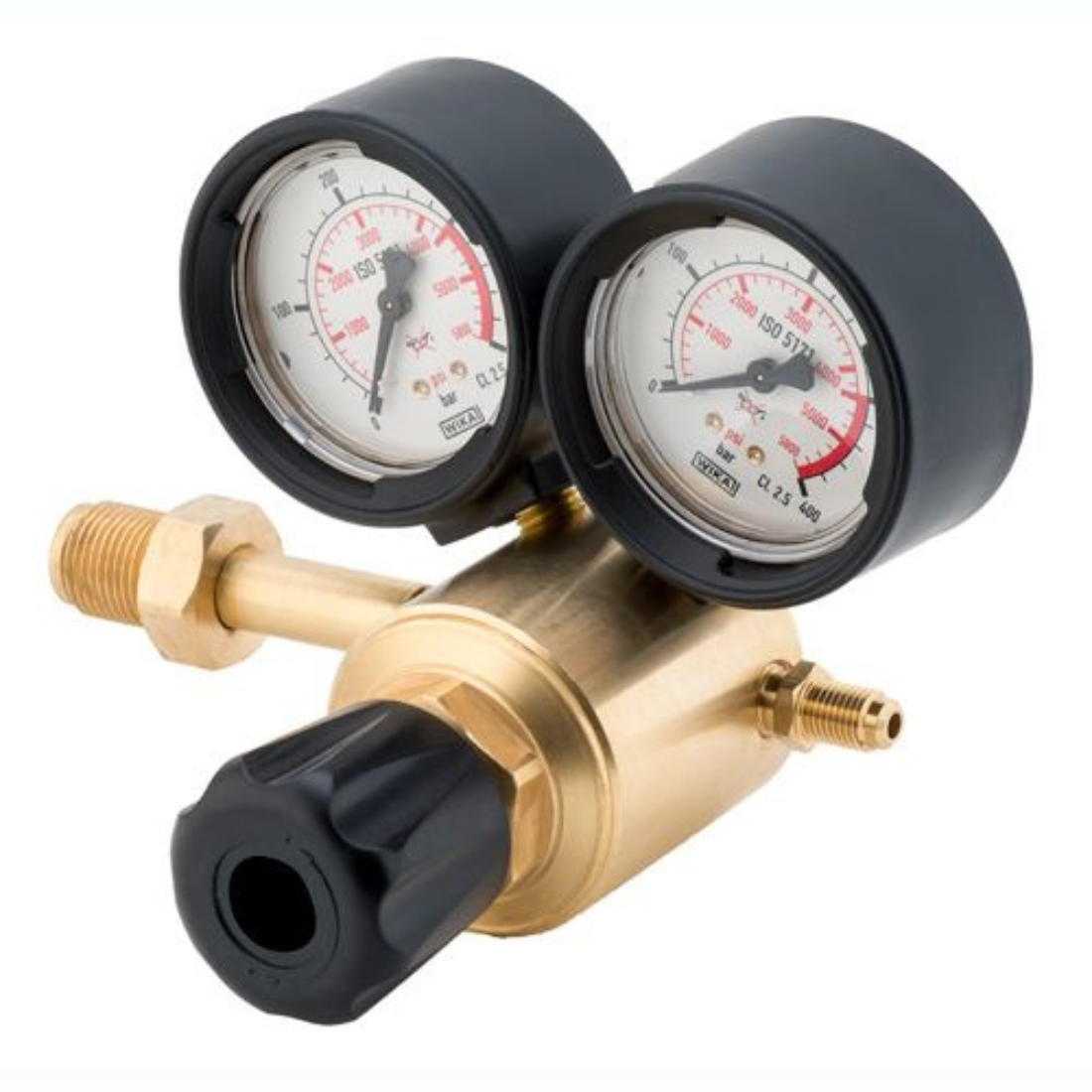

Nitrogen Regulator (0-200 Bar) For CO2 (R744) Systems

Technical features

• Inlet pressure: 300 bar (30 MPa)
• Outlet pressure: 0-200 bar (0 – 20 MPa)
• Connections: 1/4” SAE M
• Regulation system: Pistone
• Inlet gauge: 0-400 bar FS
• Outlet gauge: 0-400 bar

Options:

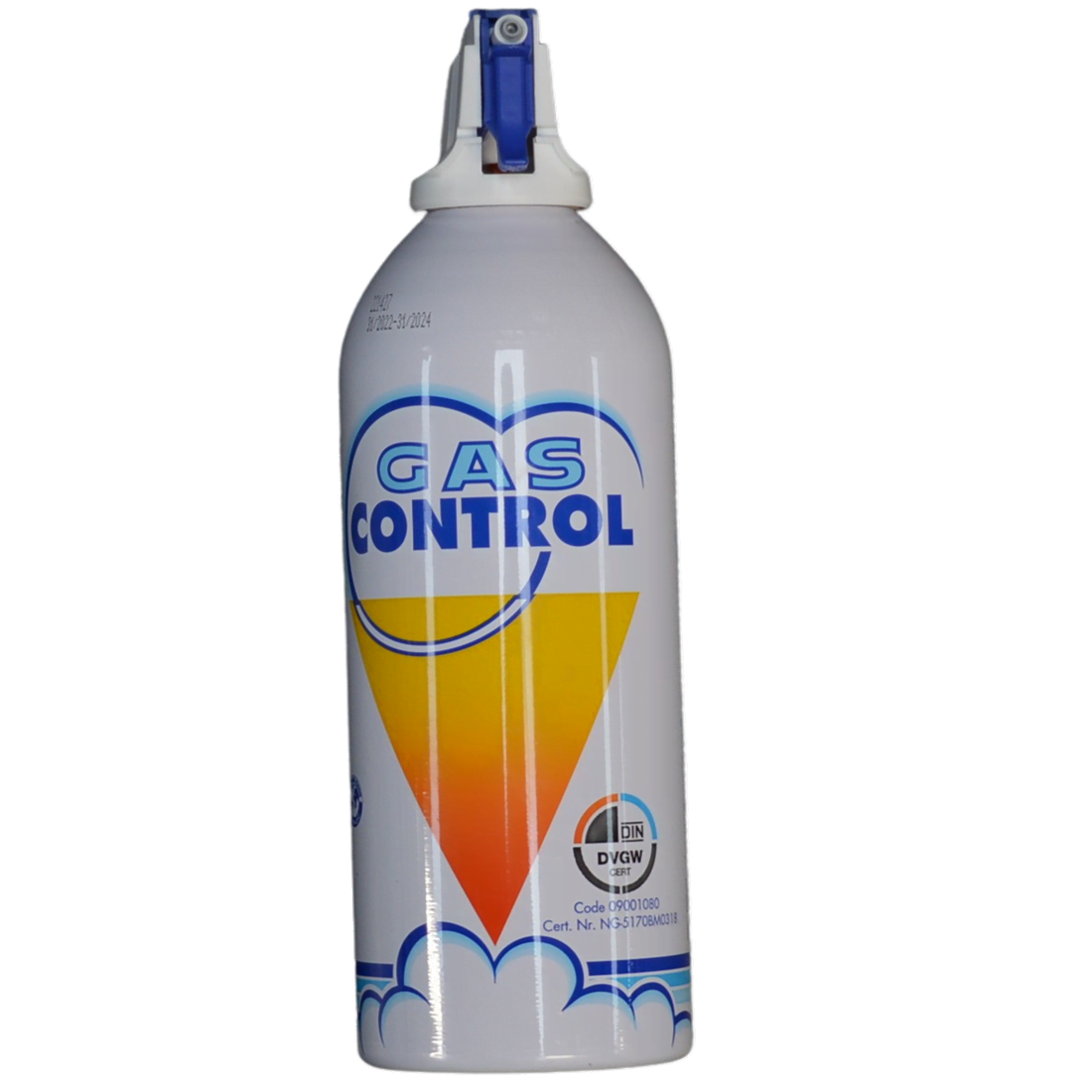

• Gas Control Leak Detection Spray 400ml

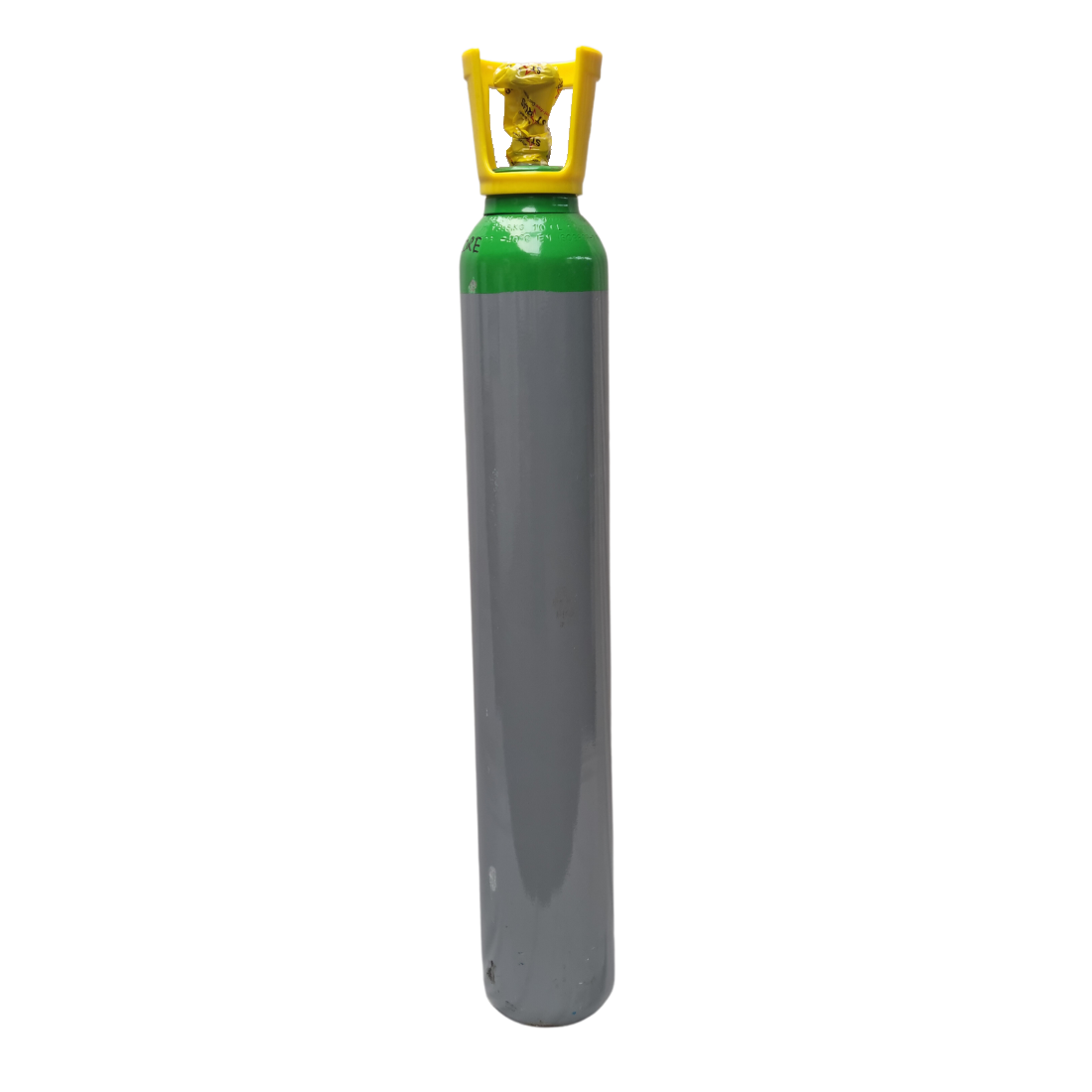

• 10L Nitrogen/Hydrogen Gas For A/C Leak Testing

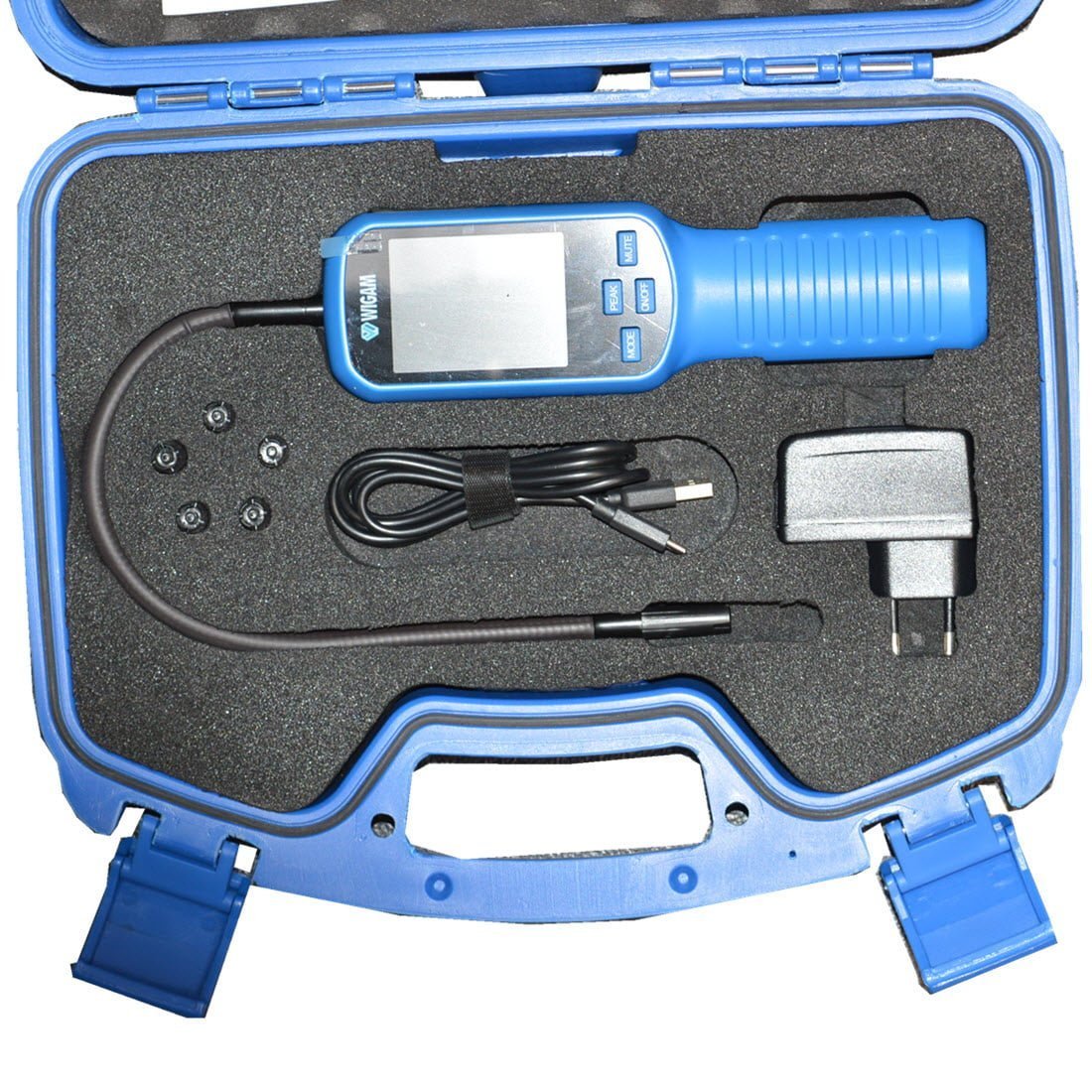

• Wigam Voyager Refrigerant and Nitrogen/Hydrogen leak detector
