Power Probe Circuit Tester Kit with Short/Open Electrical Circuit Tester

Product Description

Power Probe Circuit Tester Kit with PowerProbe 4 12-24v Circuit Tester & Short/Open Electrical Circuit Tester

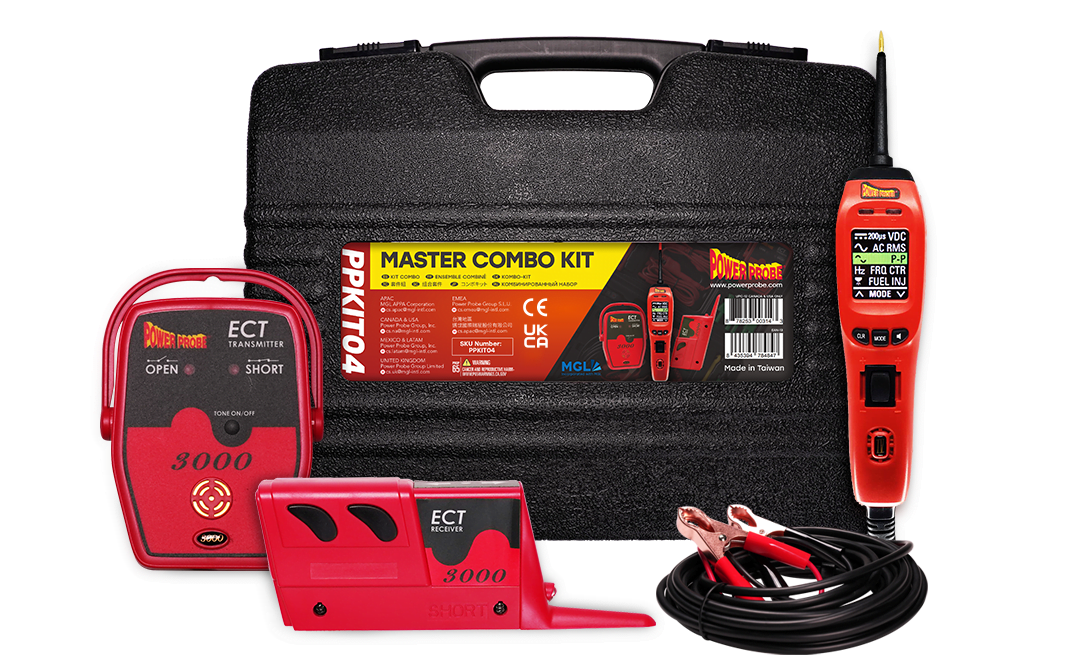

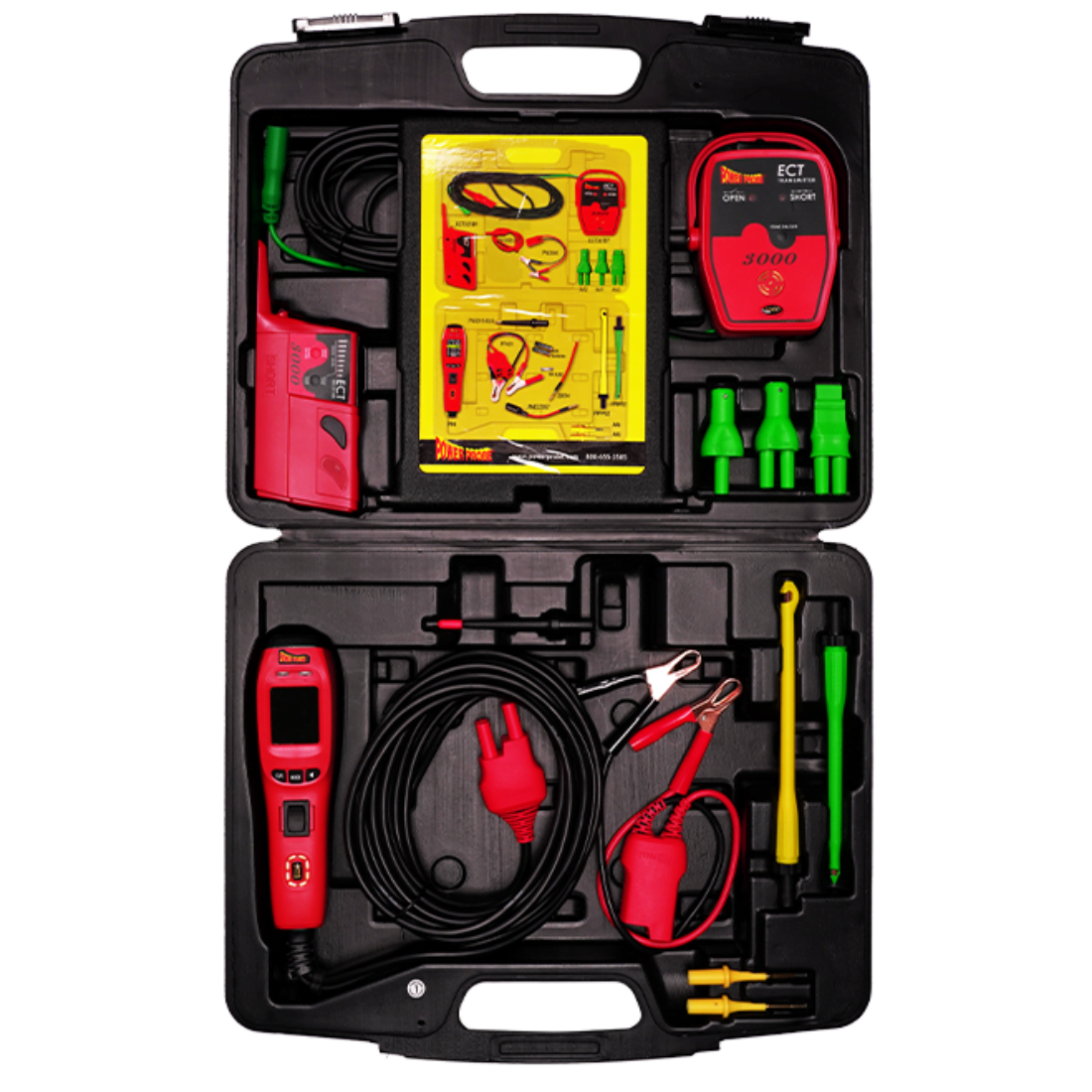

The Power Probe 4 Master Combo Kit combines the Power Probe 4, PPECT3000 and various accessories to provide the ultimate combination of diagnostic and circuit-testing capabilities. The Power Probe 4 provides simplified testing of Motors, Lights, Relays, and Sensors, and even Fuel Injectors. Also, like all Power Probe circuit-testers, it supplies Power and Ground for functional component testing on or off the vehicle. The PPECT3000 will help you trace short and open circuits quickly and accurately.

Power Probe 4 Features

• Supply Power or Ground for Functional Component Testing
• Self-Resetting Thermal 8 Amp Circuit Breaker
• Multiple DC Volt readings on the same display
• Ohmmeter provide active feedback]
• 12 – 24 Volt Range
• Bad Ground Indicator
• Continuity Tester
• Component Tester
• AC-RMS, AC Peak to Peak, Frequency and Pulse Width indicators are available for signal testing
• Fuel Injector tester for easy circuit diagnosis
• PCM/ECM Driver supplies safe voltage for testing computer driver circuits
• PPECT Mode for signal detection of open circuits ( When used with the ECT3000 )
• Active LED Lighting for illuminating workspace
• Power Cable Length of 23 Feet

ECT 3000 (Short/Open Electrical Circuit Tester)

Locate short circuits without removing plastic panels,molding, and carpet Find short to ground circuits, switches, or breaks in wires Test and find intermittent conditions Sensitivity adjustment from 1-8 in (3-20 cm) Trace short to ground wires with visual navigation & sound indicators Works on Cars, Boats, RV’s, Light Duty, Heavy Duty Trucks and Trailers.

Power Probe 4 Specifications

Min Operating Voltage – 8 VDC
Max Operating Voltage – 30 VDC
Max Tip Voltage – 450 Volts
Probe Tip Resistance to Ground – 130K Ohms
Computer Safe – 0.1mA floating tip
Voltage Measurement – -100 to 200 VDC / VAC
Voltage Resolution – -99.99 to 99.9 V – 0.01V(10mV), 100.0 to 199.9 V – 0.1V (100mV)
Glitch Capture – >380µS Min Pulse Width
Power Feed Test – < 30 mA
Resistance Measurement – Ohms to 10K Ohms
Frequency Measurement – 1Hz to 9999Hz
Driver Test – 50 Ohm Pull Up on Tip, Driver On Range: 50mV to 1V
ECT Signal Detection – 2 sec.
Fuel Injector Mode – LED Flash @ Min 35V @ 100µS Pulse
Red LED Response – Within 0.5V BATT V and < 10 Ohms
Green LED Response – < 10. Ohms
Circuit Breaker – 8 Amp Thermal – Auto Reset
Breaker Trip Response – 8 Amps = No Trip, 10 Amps = 20 min, 15 Amps = 6 sec, 25 Amps = 2 sec, Short Circuit = 0.3 sec.
Operating Temperature – -20°C (-4°F) to 50°C (122°F)
Storage Temperature – -40°C (-40°F) to 65°C (149°F)

ECT 3000 Specifications (Short/Open Electrical Circuit Tester)

Transmitter

Min Operating Voltage – 6 VDC
Max Operating Voltage – 48 VDC
Working Current – <200mA
Working Frequency – 4KHz
Max Operating Temp – 50°C
Max Storage Temp – 70°C
Max Operating Relative humidity – 80% (Non-condensation)
Max Storage Relative humidity – 80% (Non-condensation)
Altitude – <2000m

Receiver

Power Supply – 2 X 1.5V AAA
Working Current – When not signal be detected <15mA
Power Consumption When Power Off – <10uA
Max Operating Temp – 50°C
Max Storage Temp – 70°C
Max Operating Relative humidity – 80% (Non-condensation)
Max Storage Relative humidity – 80% (Non-condensation)
Altitude – <2000m
