PowerProbe Short/Open Electrical Circuit Tester, Base Set

Product Description

The ECT3000B allows you to trace short circuits with a directional indication, trace short circuits with distance indication, trace open circuits with LED indication and work on 12-24 volt systems.

Original product from your Official Power Probe distributor.

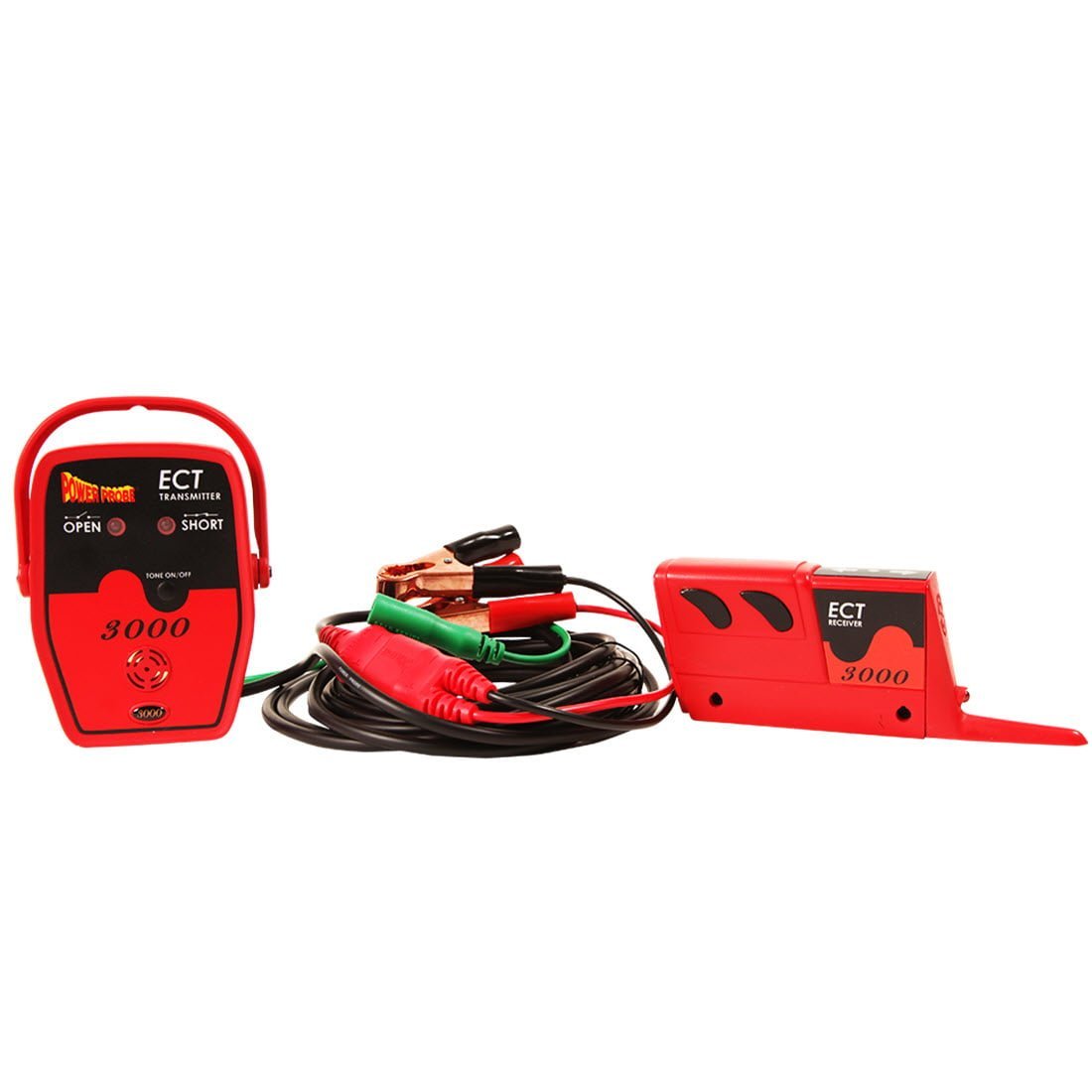

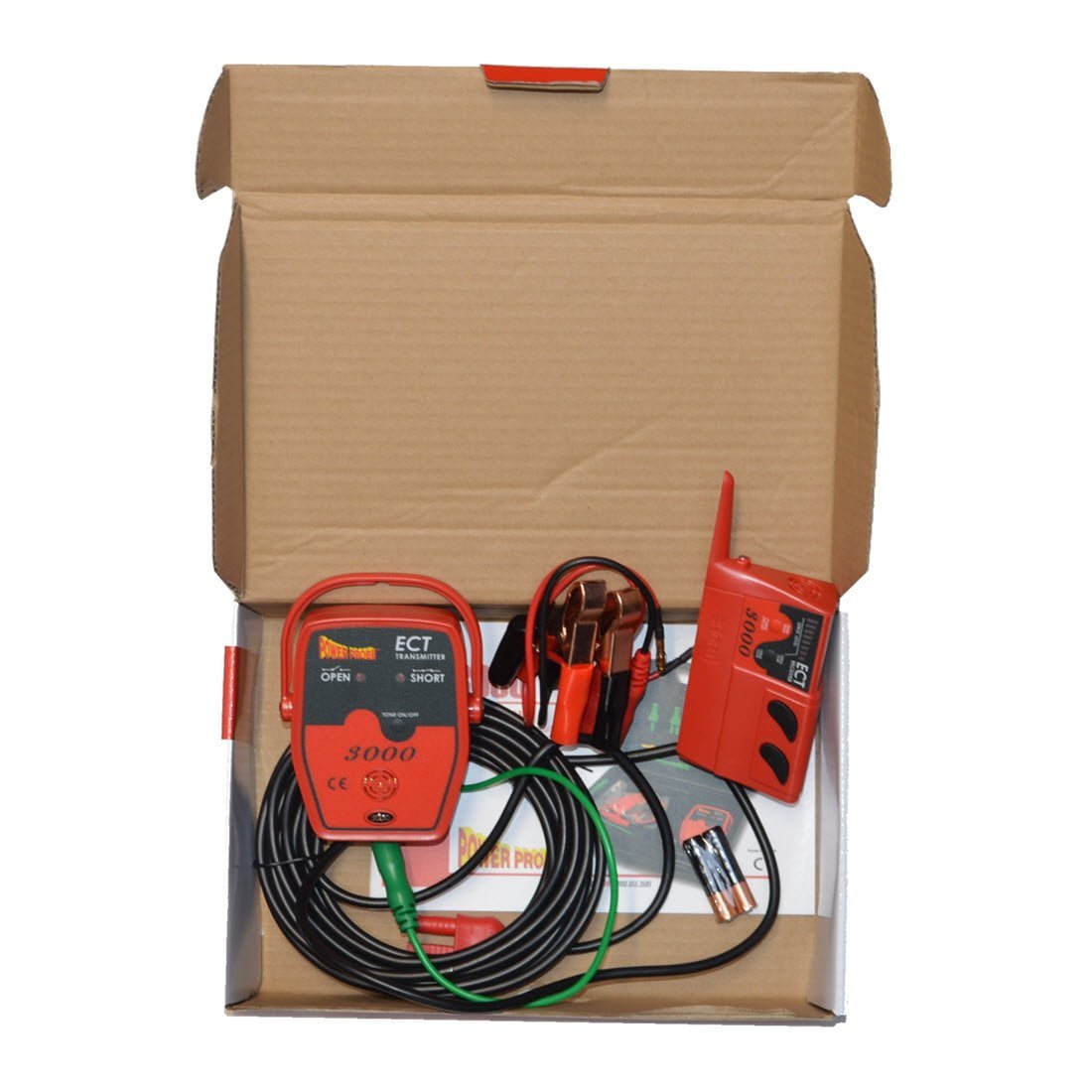

INCLUDES

• 1 x ECT Transmitter
• 1x ECT Receiver
• Universal 4mm adapter
• AAA Batteries

FEATURES

• Trace Out a Short Circuit to Chassis Ground
• Tracing Out a Battery Drain or Current Draw
• Isolate your Circuit
• Verify the Short Circuit to Ground
• Verify an Open Circuit
• Short Circuit inside a wire harness
• Reception Distance from 1 inch to 8 inches
• Tracing Circuits that are shielded (Plastic Panels, Pillars, and Carpet)
• Shut off time is now 10 mins

SPECS

         Transmitter Spec

• Min Operating Voltage 6 VDC
• Max Operating Voltage 48 VDC
• Working Current: <200mA
• Working Frequency: 4KHz
• Max Operating Temp: 50 C°
• Max Storage Temp: 70 C°
• Max Operating Relative humidity: 80% ( Non-condensation)
• Max Storage Relative humidity: 80 % (Non-condensation)
• Altitude: <2000m

  Receiver Spec
• Power Supply: 2 x 1.5V AAA
• Working Current: When not signal be detected <15mA
• Power Consumption when power off:<10uA
• Max Operating Temp: 50°C
• Max Storage Temp: 70° C
• Max Operating Relative humidity: 80% (Non-condensation)
• Max Storage Relative humidity: 80% (Non-condensation)
• Altitude: <2000m
