Product Description
Sice 3D 2 Camera Wheel Alignment System
The A92E can now also intergrade with the Sice PROADAS system allowing you to use your A92 aligner for the ADAS alignment pre check and also to align the ADAS structure with the vehicle
About Sice:
Sice is a brand founded in 1964 and based in Correggio, Reggio Emilia, Italy
Sice manufactures tyre changers and wheel balancers for cars and trucks, along with wheel alignment systems and vehicle lifts, and its wide range of products meets the tyre servicing and workshop needs.
The patents for machines and accessories are numerous and guarantee the quality and uniqueness of Sice solutions.
Some Sice products have been approved and certified by prestigious car and tyre producers and certified bodys.
Over 85% of Sice sales are accounted for by exports to around 90 countries worldwide
Sice is a Nexion group company with more than 60 years of history, today the Nexion Group is a world leader in the automotive sector. Experience and continuous research into innovation now coexist in a single group, which brings together the sector’s top brands in a solid and increasingly international company.
Nexion group companies:
The A92E aligner is the same high quality product as would be supplied by other Nexion group company’s

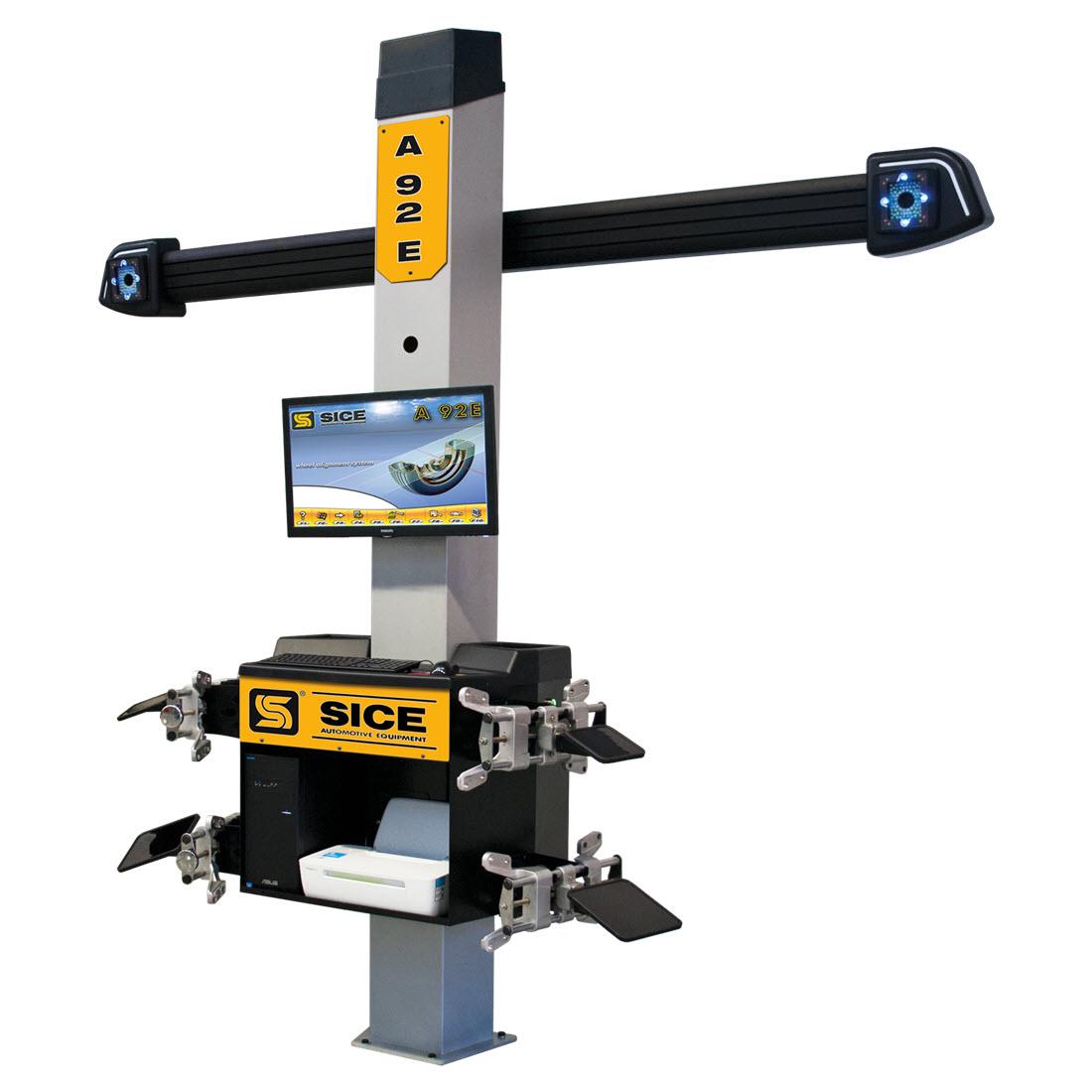

New A92E 3D wheel aligner with 2-camera reading system:
Features:
- Fast, precise and very reliable:
- Made by Nexion Group Company
- High quality components and modern design
- User friendly software for precise and quick alignment measurements
- Intuitive 2-key operation with easily accessible tutor help
- Easy access to all adjustment values
- 10” to 26” sensor holder (with adaptor)
- Pratical trolley for clamp and sensor holder (optional).
- High-Resolution Light Target. It can be detached from the bracket and is compatible with all Sice brackets.
- Front infrared filter for enhanced immunity to solar reflections.
- Superior Quality Camera. Latest generation high-resolution HI-Q camera for artificial vision. Operating light indications thanks to
the integrated synoptic panel. Measurement in difference. Each acquisition is differentially processed by 2 consecutive images to
eliminate measurement problems in critical sunlight conditions or in the presence of light reflections.
- Main unit complete with PC holder and platform for keyboard and printer
- Lift Drive-On Assistant by remote camera for easy vehicle positioning (optional).
- NEW INTEGRATED LIFT WITH WORMGEAR AND SAFETY SYSTEM (PATENT PENDING) Camera movement kit allows the operator to work from pit level to over 2.00 meters by pressing a key on the keyboard. Fast and easy. Lift level automatic tracking function (optional) Integrated and safety mechanism (patent pending).
- A first class international based databank
- Multilanguage Windows 10 IoT operating system
- Live graphic indications
- User databank for insert or modification vehicle data
- Chassis measurement data
- Factory-calibrated, calibration checked only upon installation, no periodic calibrations required
- Job operation customer data bank, to recall and memorize all customer data
- Camera movement for working from ground to 2 meter height (optional)
- Lift level automatic tracking function (optional)
The A92E is available in 2 different packages:
A92E full pack, part number = 0-34102201/36
The A92E full pack does not include the monitor, wheel clamps or turntables as it depends on the size and type the customer wants.
includes:
- Measuring beam
- Column
- PC, printer, keyboard and mouse
- 4 hi-resolution small targets
- brake pedal depressor and steering lock
A92 No PC, part number = 0-34102301/36
Same as A92E full pack but without PC, printer, keyboard and mouse for cases where customer whish’s to use his own,
The A92E no PC does not include the monitor, wheel clamps or turntables as it depends on the size and type the customer wants.
includes:
- Measuring beam
- Column
- 4 hi-resolution small targets
- brake pedal depressor and steering lock
All of the above packages includes:
- Delivery
- Installation
- Set up
- On site Training
Options:
- Practical trolley for clamps and target holder
- Wheel clamps (different types available depending on customers requirements and budget)
- Camera movement kit allows the operator to work from pit level to over 2.00 meters by pressing a key on the key board
- Lift level automatic tracking function
- Wireless remote control kit
- Lift drive-on assistant by remote camera for easy vehicle positioning
- NEXREMOTE The tablet is used as a remote control unit of the graphic user interface or as an additional portable monitor. It can also be used to show in real time to the customer the current vehicle status
- Aligner trolley, allows you to move aligner around to use in different locations in the workshop
- Cabinet for printer unit
- Turntables (different types and sizes available)
- Steering wheel level tool Click here for more info
- Monitor different sizes available, 19, 22 or 27 inch
- Tecnomotor Diagnostic tools to perform steering angle calibrations after the wheel alignment and other multi brand diagnostic requirements, Click here for more info on the Tecnomotor diagnostic tool range
- Sice PROADAS system Click here for more info
- Other options available, please enquire for more information
Please Contact us for more information
Only logged in customers who have purchased this product may leave a review.
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to this is why we want to explain as clearly as possible what both parties are committing to,
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms for example loaner units calling on site etc so please enquire for more information if you are based outside of Ireland
Warranty
All Sice wheel aligners come with 1 year warranty (2 years if registered on the Sice website)
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs.
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit (subject to availability) delivered to the customer within 72 hours (Monday to Friday)
The 1 year warranty is subject to correct use, maintenance and servicing according to the maintenance instructions in the user manual.
Items excluded from the 1 year warranty are
Machine calibrations (if knocked out of calibration due to mishandling)
Database updates
Problems with the PC caused by virus and other software’s installed that are causing problems,
Damage to any of the components caused by incorrect power supply, Excessive dampness, or any other damage caused by ingress, other foreign bodies, accidental damages, incorrect use damages or unauthorised modifications.
Conditions to keep warranty valid
All general maintenance and servicing must be carried out at the correct intervals according to the maintenance instructions in the user manual.
Delivery and Training
Ryan’s Automotive will deliver the unit to you workshop and Install/set up the unit and once set up will provide 4 hours onsite training on use of the machine.
Support and extra training
Ryan’s Automotive will provide machine technical support by phone, WhatsApp, our customer support portal or email when needed (subject to fair use) and can provide extra chargeable training if required.
Servicing, Repairs, Calibrations and database updates not covered by the warranty and after the warranty period
Ryan’s Automotive can perform all servicing, maintenance, calibrations and database updates that may be needed on these units in Ireland during and after the warranty period at very reasonable rates
For servicing and repairs not covered by warranty or after the warranty we can assist in few different ways
1 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for
completion
2 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or
transportation fees)
3 Arrange to get the unit picked up and taken back to Ryan’s Automotive
4 Send out the necessary parts to the owner and advise over the phone how to perform the necessary
operation
5 Provide a hire unit for the period that the unit is out of action (note this is chargeable for none
warranty repairs and subject to availability)
