Product Description
ThinkCar Euro Master 2 With 2 Years Updates
The ThinkCar Euro Master is a comprehensive diagnostic tool for vehicles, boasting a huge range of coverage for over 130 car brands. Its TVCI smart connector supports multiple communication modes (USB, BT, WIFI) and diagnostic protocols, making it highly versatile. With 41 maintenance functions, bi-directional functions, and other features, this modular and expandable device is perfect for automotive experts.
FEATURES
- Online Coding: The Master 2 supports online coding for BENZ, BMW, PORSCHE, VW, AUDI, SEAT, LANDROVER, NISSAN for some systems and models. This helps to match and code new ECUs after a replacement, or to unlock the hidden functions (also know as Retrofits and Conversions) bringing more possibilities to your car.
(for coding it does a huge range of systems and models in the above brands but we don’t claim all)
- Step-by-Step VAG Guidance: Equipped with VAG Guidance for VW, AUDI, SKODA and SEAT vehicles, the Euro Master can walk you through some operations with step-by-step instructions, help you skip the security access code and channel numbers to perform matching, calibrations, and basic adjustments or settings, effectively streamlining the diagnostic process.

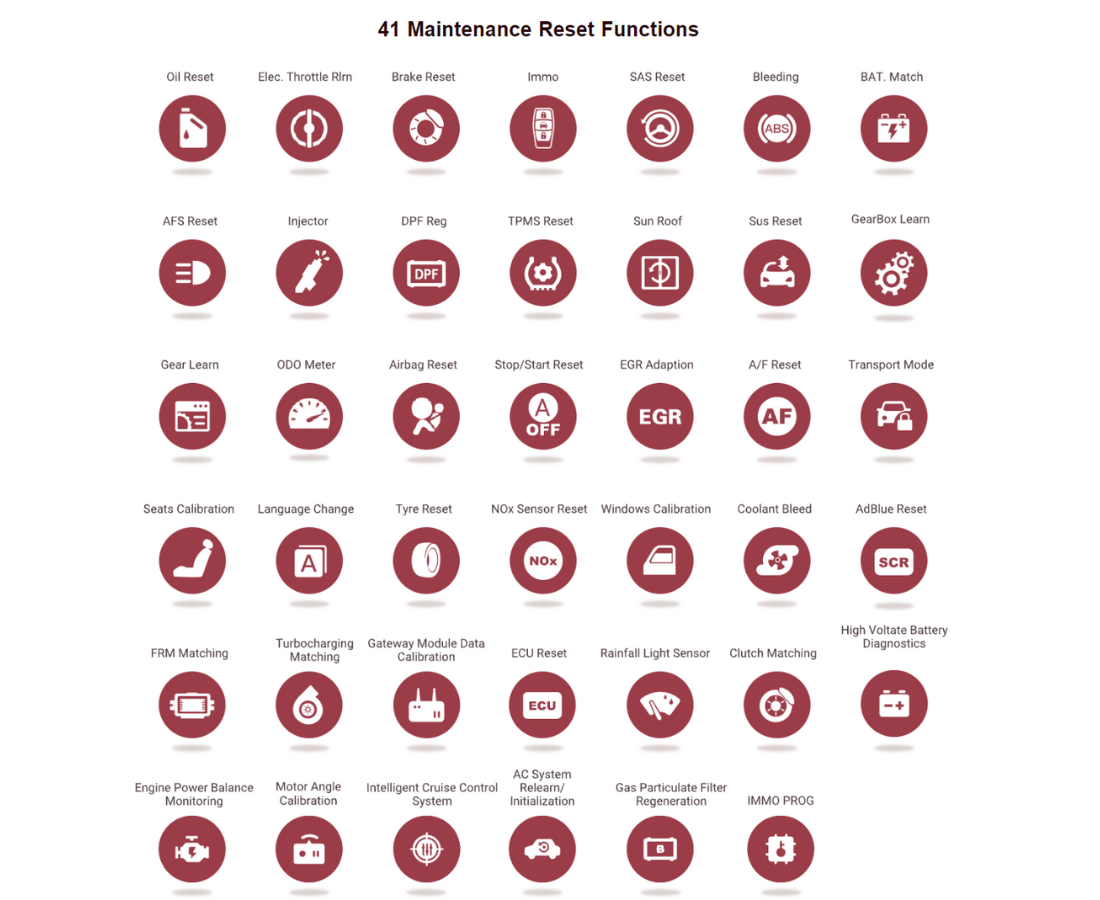

- 41 Maintenance Reset Functions: Air-to-Fuel Ratio Reset, AdBlue Reset, AFS Reset, Airbag Reset, ABS Bleeding Reset, Battery Match, Brake Reset, Coolant Bleed Reset, DPF Regeneration, EGR Adaptation, Elec Throttle Relearn, Gear relearn Reset, Gear Box Relearn, immobilizer Reset, Injector Reset, NOX Sensor Reset, Odometer, Oil Reset, SAS Reset, Seat Calibration, Stop & Start Reset, Sunroof Reset, Suspension Reset, TPMS Resets, Tire Refitting Reset, Window Calibration, Transport Mode, Language Change and More.
- Cover 200 + Vehicle Makes: The Euro Master allows professional technicians to take on more jobs with access to automotive coverage for over 200 vehicle makes, including GM, FORD, Chrysler, Benz, BMW and more.
- Bi-Directional Control to Identify Problems Accurately: With Bi-Directional capabilities, the Euro Master can perform individual tests for single actuators to know if the actuator functions well. Capabilities include fuel injectors, coolant pumps, windows, windshield wipers, and more.

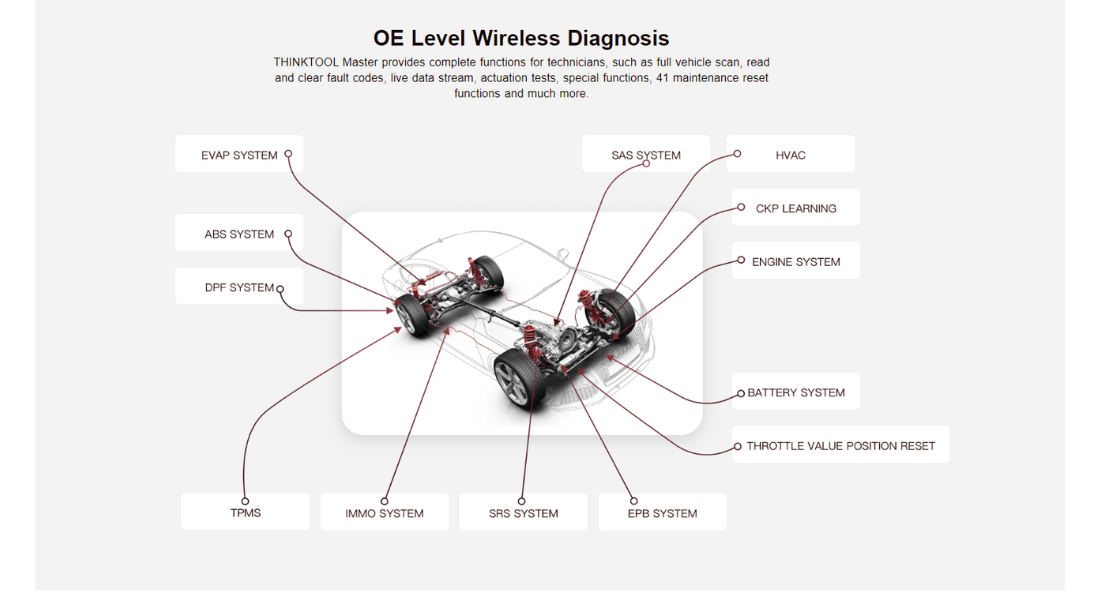

- Near OE Level Wireless Diagnosis: THINKTOOL Euro Master provides complete functions for technicians, such as full vehicle scan, read and clear fault codes, live data stream, actuation tests, special functions, 41 maintenance reset functions and much more.
- Data Recording: Record data streams for reference at any time. The data will be displayed in the form of an easy-to-read graph which helps users intuitively observe data changes over time and view up to 12 data streams on one screen.
- SGW security gate way: Optional FCA SGW yearly subscription provides SGW unlock for FCA vehicles (Abarth, Chrysler, Dodge, Jeep, Alfa Romeo, Maserati, Ram trucks, Lancia and Fiat)
Optional Renault SGW token activations provides SGW unlock for Renault and Dacia
VAG group SGW unlock available in conjunction with 3rd party providers on pay as needed basis (full VAG SGW unlock coming soon)
SGW unlock for other brands coming soon
- Acquire Vehicle’s Information In Seconds: The AutoVIN function lets the Master 2 gather important vehicle information including the vehicle make, model, and year automatically, shortening the diagnostic time substantially.
- Wireless Bluetooth Diagnosis: With the wireless VCI connected to the vehicle, a technician is not bound to a cable connection. This wireless VCI gives technicians the ability to diagnose and code as long as they are in range of the Bluetooth VCI.

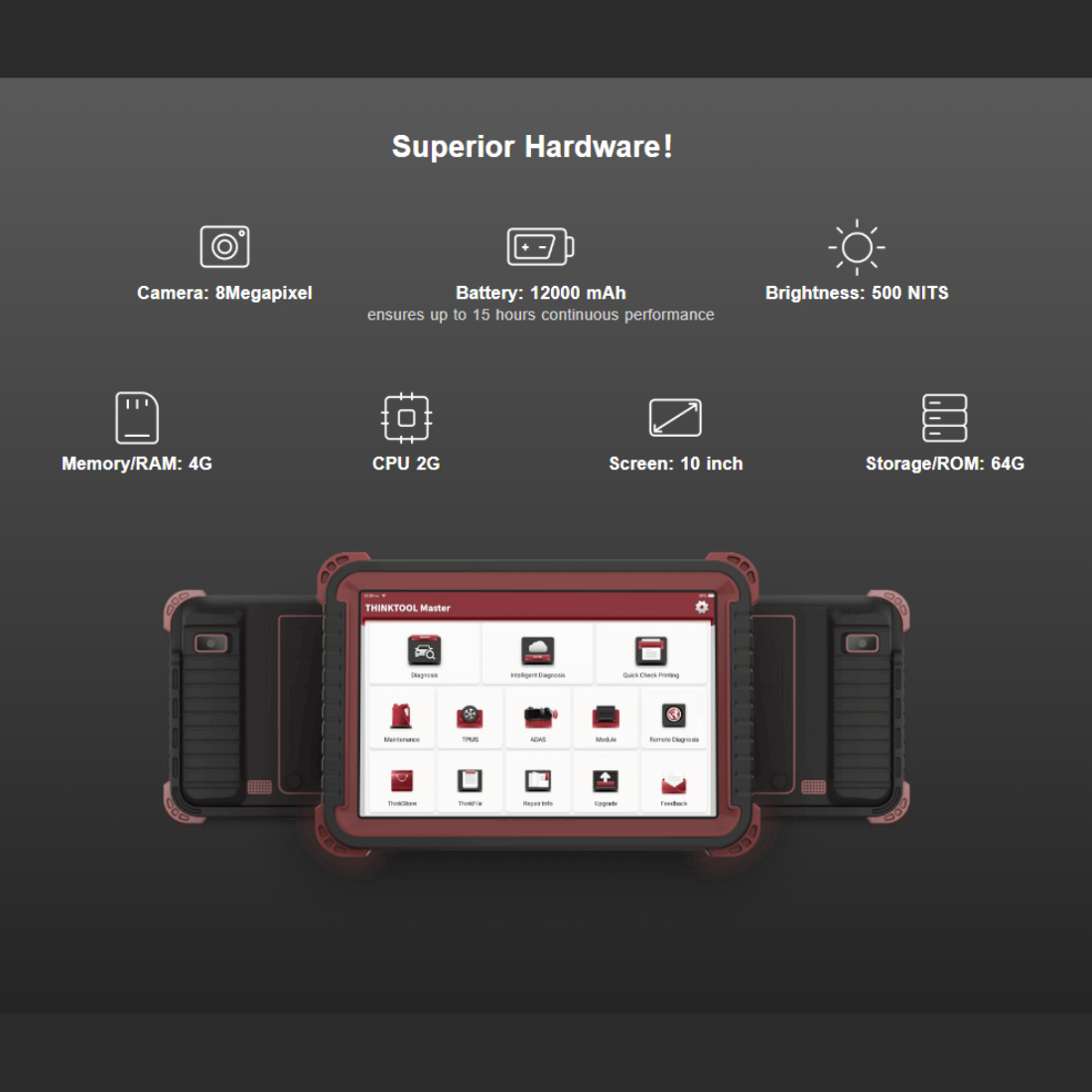

- Superior Hardware: It comes with an 8 megapixel camera, 12000 mAh battery, 4GB of Ram, 10 inch screen, 2G CPU and 64GB of storage.
- TPMS & ADAS Capability if purchased (optional hardware required)
- Save and Share Reports
- One-Click Software Update
Technical Specifications
- Camera: 8.0MP
- Battery: 12600mAh
- ROM/RAM: 64G/4G
- Processor: 2.0GHz | OCTA-Core
- TeamViewer: Supported
- Display Screen: 10-Inch/TFT(IPS)
- Connection Mode BT5.0/WIFI(WLAN802.11b/g/n)
- Diagnostic VCI: TVCI
- Software Update: 2-Year Free Update
- Operating System: Android 10
- VW Guide Function: Supported
- VIN Automatic Detection: SCANVIN / AUTO-VIN /AUTO-SCAN
Users can pair the Master 2 with the whole range for THINKCAR Accessories such as oscilloscope, battery tester, thermal camera, TPMS tool plus more
FEATURES AT A GLANCE

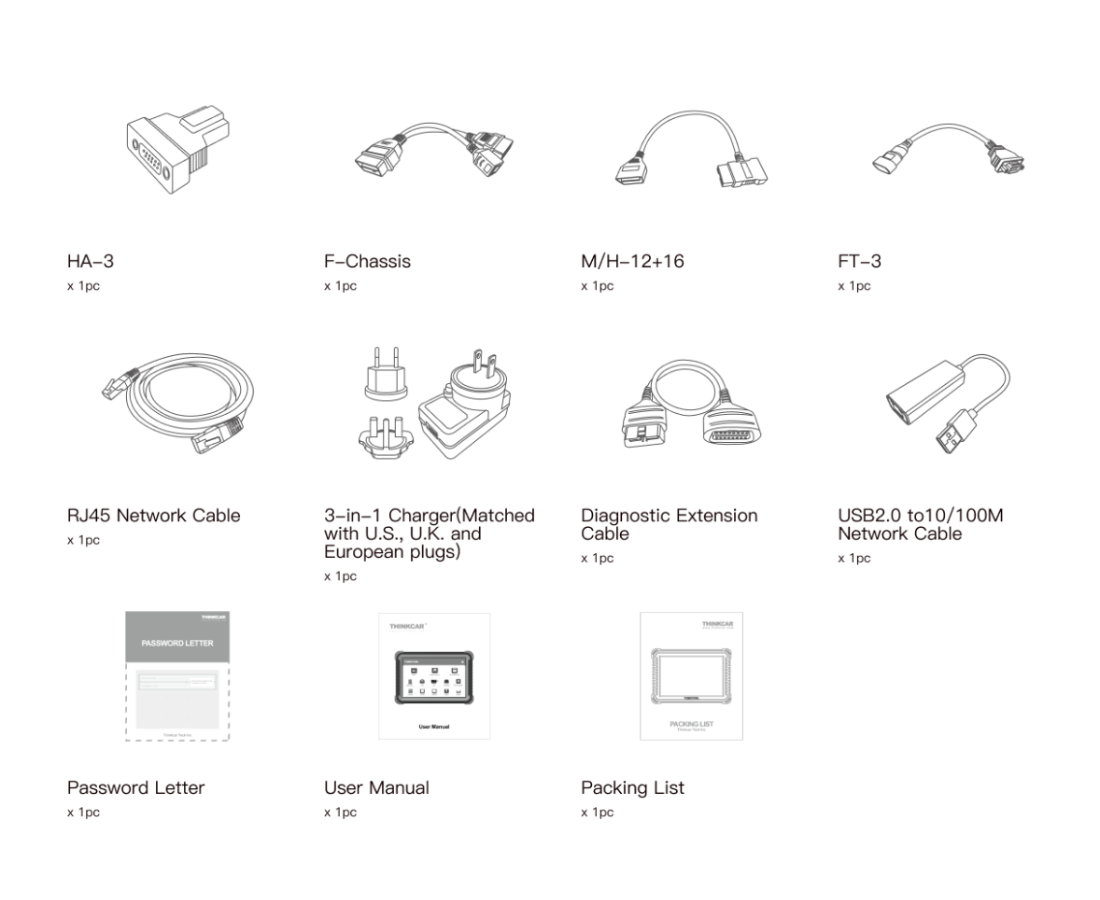

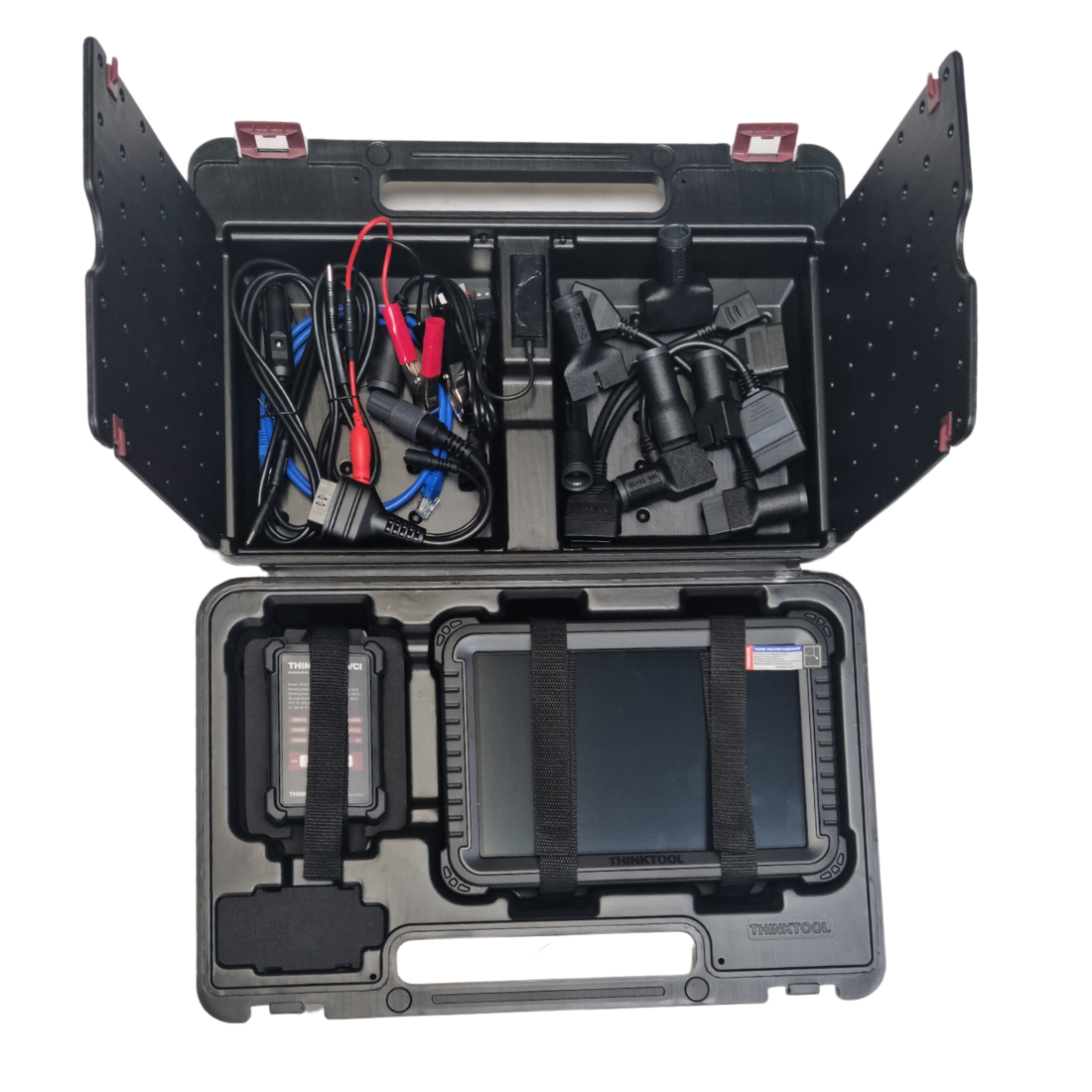

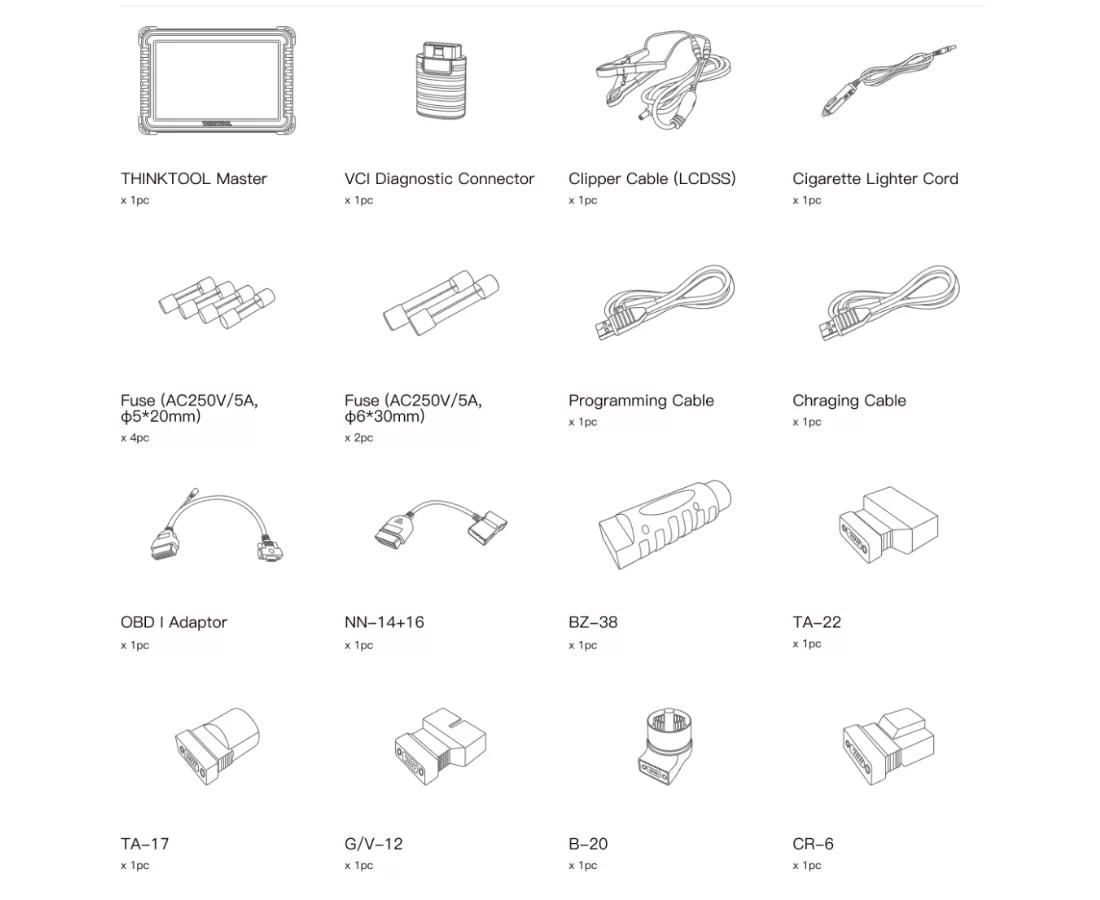

What’s in the box
(The VCI in the image below is the older type and this kit comes with the bigger TVCI VCI)

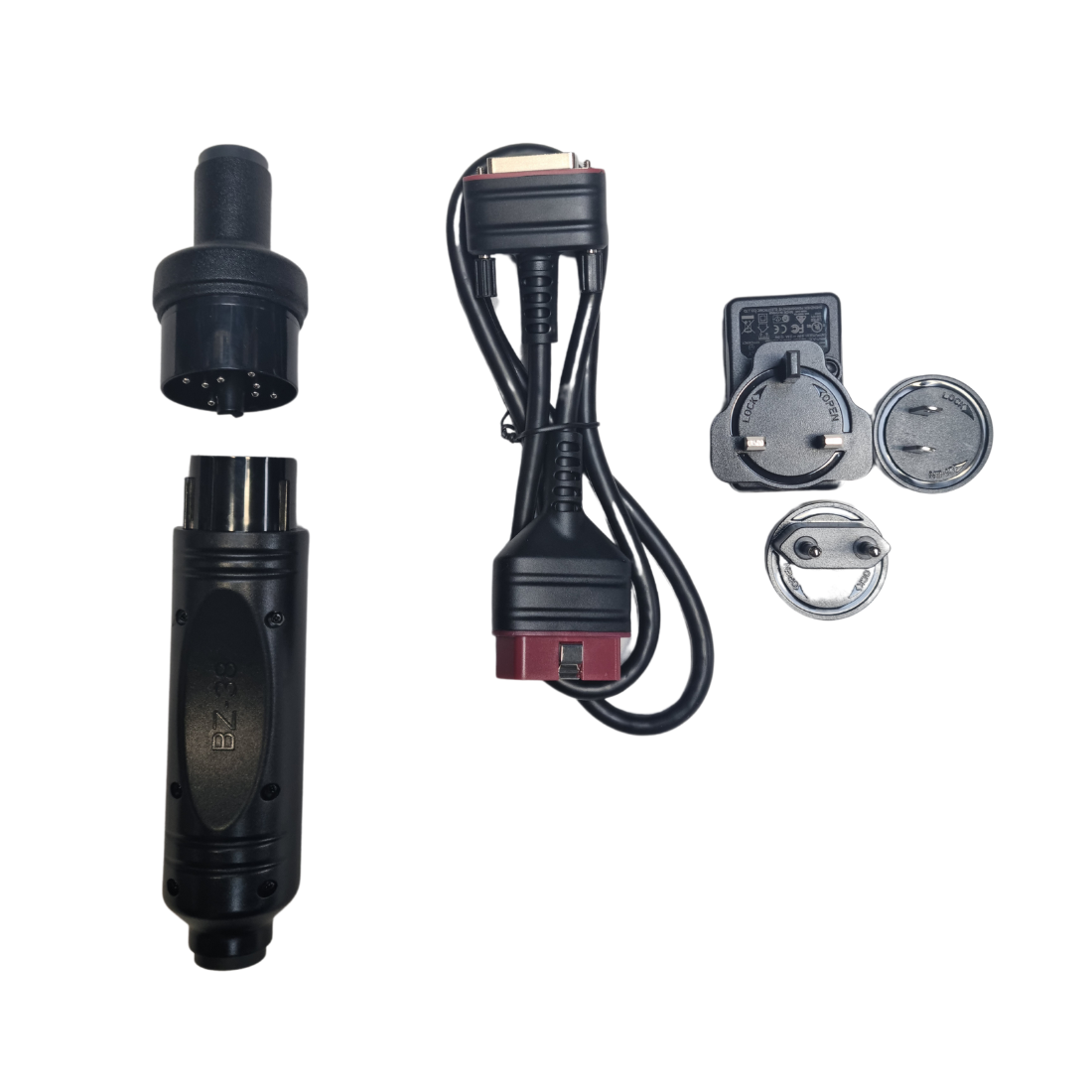

Options:
Coverage list: Click here to view the coverage list, make sure to select the product type from the drop down list
For other ThinkCar models please click HERE
General
We at Ryan’s automotive pride ourselves on the support we give with the products we sell,
As we believe that selling the product to the customer is only the 1st step and that ongoing support is very important so the customer can get good value from his equipment,
We are also in a great position to support these products as we use them every day in our own workshop,
Support and after sales service can sometimes be a very loosely used terms and it is not always clear what the supplier is committing to, this is why we want to explain as clearly as possible what both parties are committing to.
All of the below is based on units sold in Ireland (32 counties) and for outside Ireland it is not possible to provide all of the below support and after sales in the same forms, for example loaner units calling on site etc, so please enquire for more information if you are based outside of Ireland.
Warranty
All Thinkcar diagnostic tools come with 2 year warranty
And all warranty repairs if required will be either carried out on site or the unit picked up and taken back to Ryan’s Automotive for repairs and a loaner unit will be left with the user until the unit is delivered back. In the cases where we would get a courier to pick up the unit we would ask the workshop to pack up the unit carefully to avoid damage in transport,
We aim to keep the customer up and running and will either have the issue fixed or a loaner unit delivered to the customer within 48 hours (Monday to Friday).
Items excluded from the 2 year warranty are
Cables and OBD connections,
Problems caused by other APPS or other software’s that the user installs on the device
Damage to the machine caused by incorrect power supply, Excessive dampness, or any other damage caused by fluid ingress, accidental damages, incorrect use damages or unauthorized modifications.
Delivery and Training
Ryan’s Automotive or a courier will deliver the unit to your workshop registered and updated and ready to work,
And spend 2 hours onsite (or if not possible to call onsite can provide training over team viewer and phone) providing training on use of the machine.
We also can provide extra chargeable training if required.
Support
Ryan’s Automotive can provide tool and software technical support by phone, WhatsApp, our customer support portal, email or by logging into your unit via team viewer when needed (subject to fair use).
We also have a support section on our website which has videos and information on how to use and update the unit and also has some common vehicle diagnostic procedures and known problems, users can also send us tickets via this support area.
Additional support packages are required for vehicle technical support.
Not included in the support
Technical information that is found on systems like Autodata, Haynes Pro Alldata etc,
The above support does not include vehicle technical support but we are always willing to help customers were we can.
Repairs not covered by the warranty and after the warranty period
For repairs not covered by warranty or after the warranty we can assist in few different ways all at very reasonable rates,
1 Log into the unit via team viewer
2 Call on site and perform the necessary work and if needed take the unit back to Ryan’s Automotive for completion
3 Owner can deliverer the machine to Ryan’s Automotive to be repaired (this will save on call out or transportation fees)
4 Arrange to get the unit picked up and taken back to Ryan’s Automotive
5 Send out the necessary parts to the owner and advise over the phone how to perform the necessary operation
6 Provide a hire unit for the period that the unit is out of action (note this is chargeable for non warranty repairs and subject to availability)
