ThinkCar 4 Channel Scope

Product Description

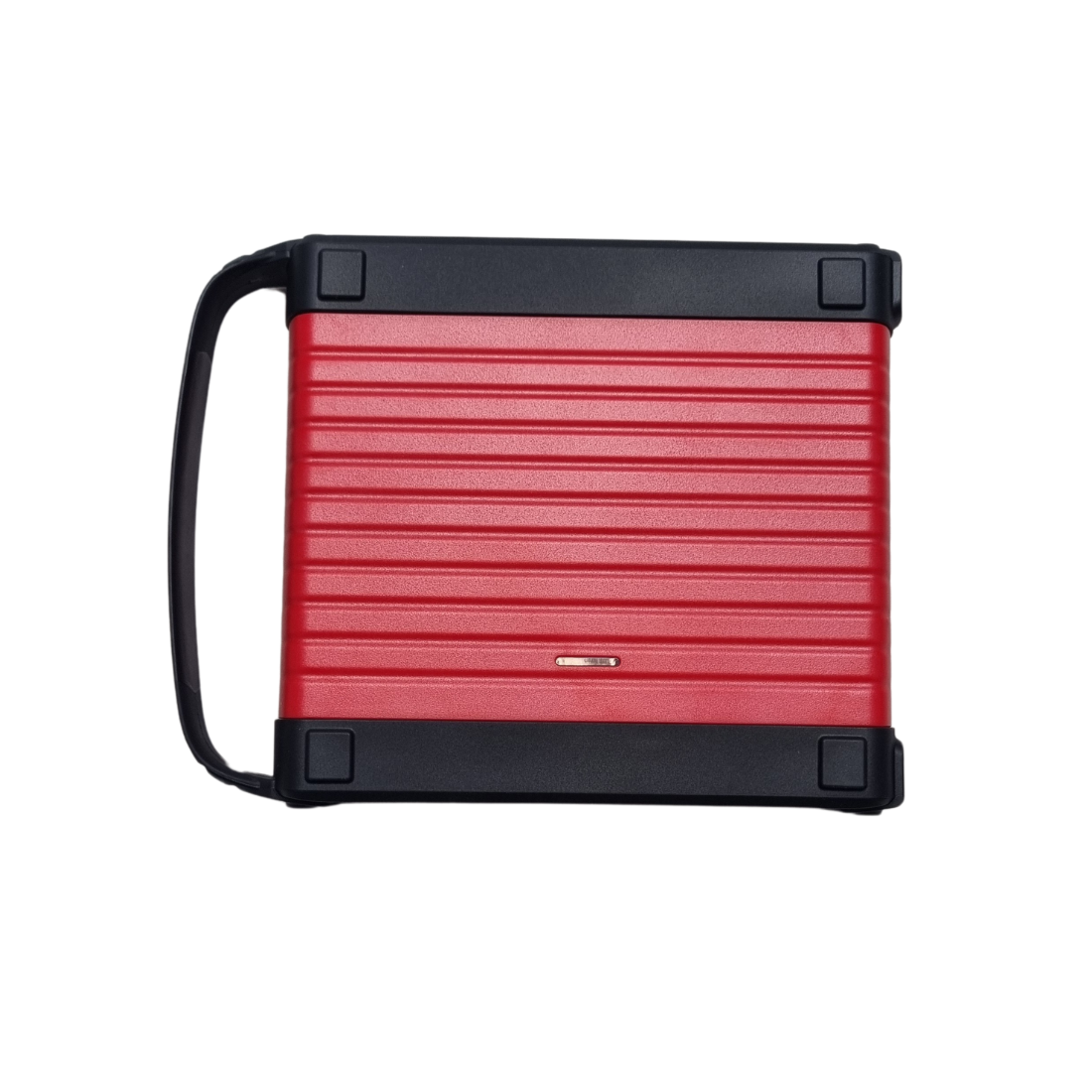

ThinkCar 4 Channel Scope

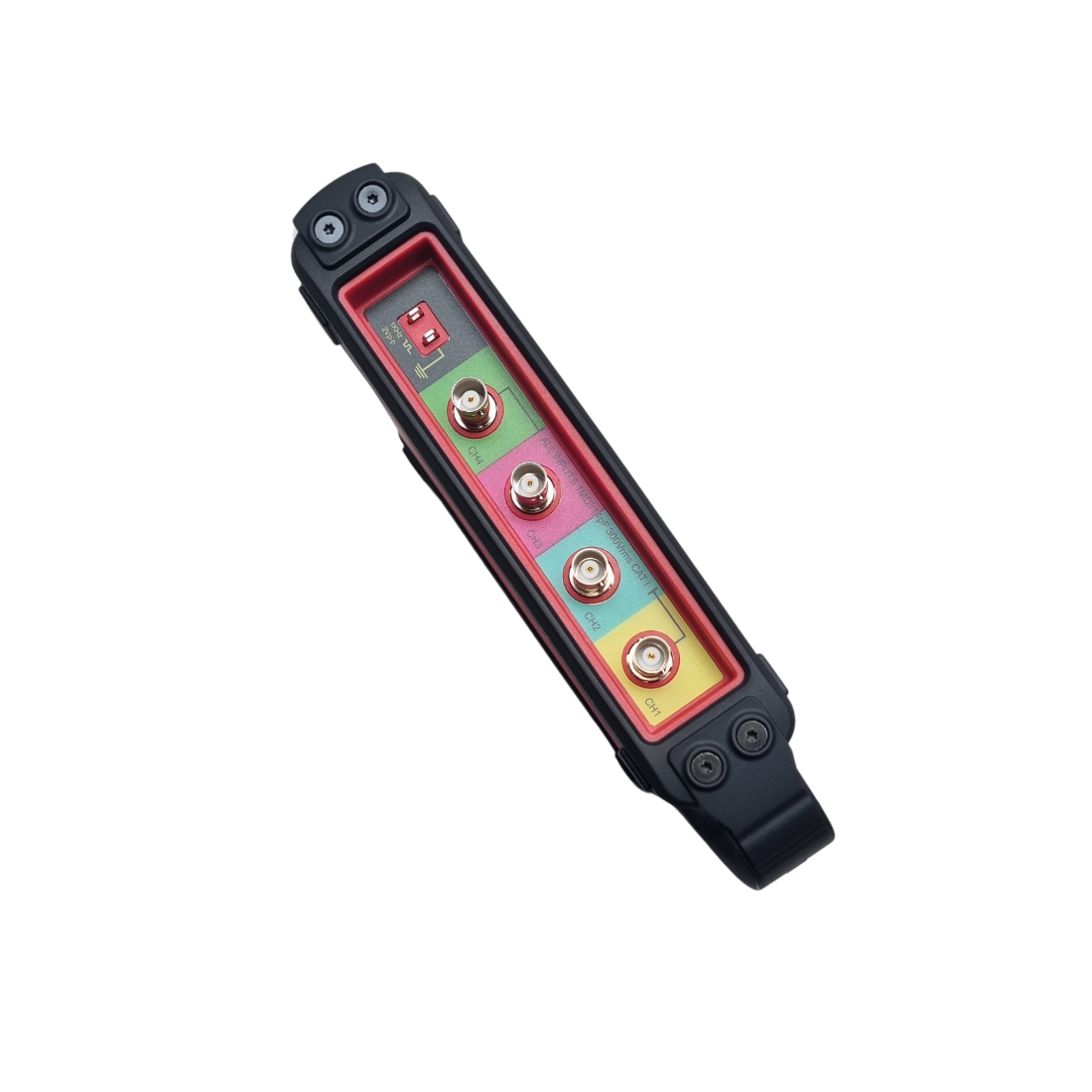

The ThinkCar Scope allows you to diagnose component and circuit faults with even more precision. With its color-coded channels, you can analyse and compare multiple components with ease.
Fix those hard-to-find intermittent problems by evaluating sensors, ignition components, pressure/vacuum related faults, and much more with pinpoint accuracy.

FEATURES

SUPER HIGH SAMPLING RATE
Sampling Rate of up to 1 GS/s (1000 MS/s). 250MS/s when using 4 channels

23 TYPES OF AUTOMATIC MEASUREMENTS
Displayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching, making automatic measurements useful and convenient.
Powerful Trigger Function: This feature supports edge, pulse width, and other triggers. Simple and intuitive setup with quick trigger source switching makes the most difficult parts of using the scope extremely easy.

HIGH MEMORY DEPTH
With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed. The upper area can be browsed globally, and the lower area can be searched for details making debugging more than twice as fast.

CONVENIENT CURSOR OPERATION
You can open horizontal and vertical cursors separately with one tap. Each cursor can be dragged independently. Cursor tracking is achieved directly through a simple highlight tap, increasing overall efficiency by more than 80%.

CUSTOMIZABLE AND LOADABLE SYSTEM SETTINGS
Various preferred system settings are available and can be saved as configuration files. This allows you to load configuration files directly to view them according to your preferences without having to set them repeatedly.

WAVEFORM RECORDING AND PLAYBACK
The waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel.

SUPPORTS MATHEMATICAL OPERATIONS ON WAVEFORMS
This feature supports addition, subtraction, multiplication, and division calculations of two-channel waveforms.

SUPPORTS A VARIETY OF AUTOMOTIVE TESTS
This feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc. Various parameters and specific connection methods are preset for each kind of test.

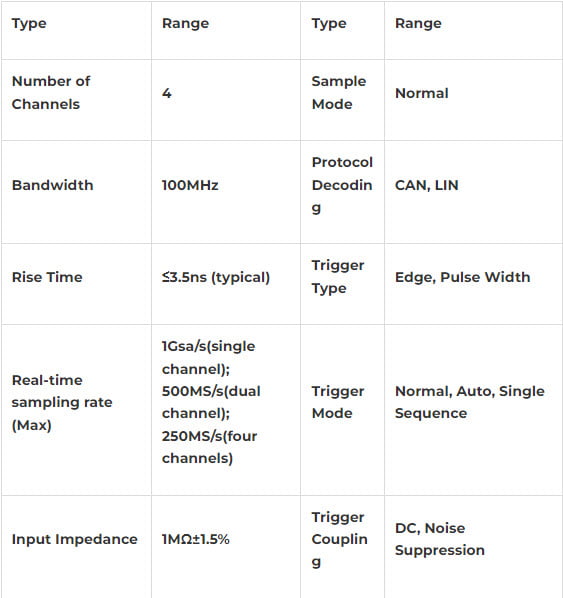

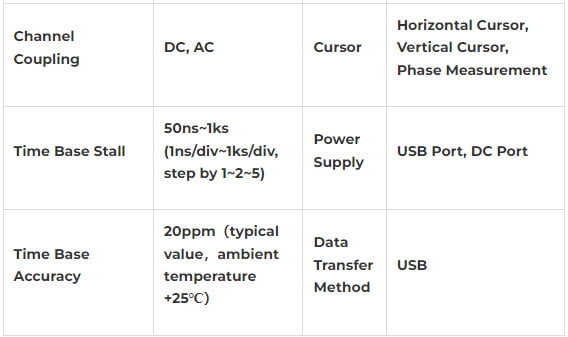

SPECS

Compatibility:

• ThinkCar ThinkTool Lite
• ThinkCar Master Lite
• ThinkCar Lite 2
• ThinkCar Master and Master II
• ThinkCar Euro Master X
• ThinkCar Master X2
• ThinkCar Euro 195
• ThinkCar Master CV
• ThinkCar Euro Max
• ThinkCar Expert 394
• ThinkCar Expert 399
