TopDon PulseQ AC 1Phase 7Kw EV Charger

Product Description

TopDon PulseQ AC 1Phase 7Kw EV Charger

TOPDON’s PulseQ is the first of TOPDON’s EV charging stations. Offering versatility, adaptability, and smart technology to users, the PulseQ makes EV charging widely accessible. The PulseQ is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2 , eliminating most brand barriers to electric vehicle owners. The compact design and multiple mounting options save space in garages, and can even be mounted outside to take up no interior space. The charging station’s interface can be accessed and adjusted through an app to set charging sessions during off-hours and to monitor the charging process.

Features:

Connector
The PulseQ is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2, eliminating most brand barriers to electric vehicle owners.

Work Easier With App
Use your smartphone to connect the PulseQ’s Wi-Fi signal to your home network. The app allows users to connect multiple chargers and perform charging jobs remotely. With the permission of the administrator (the first register), the PulseQ AC Home EV Charger can be operated by more than one person simultaneously.

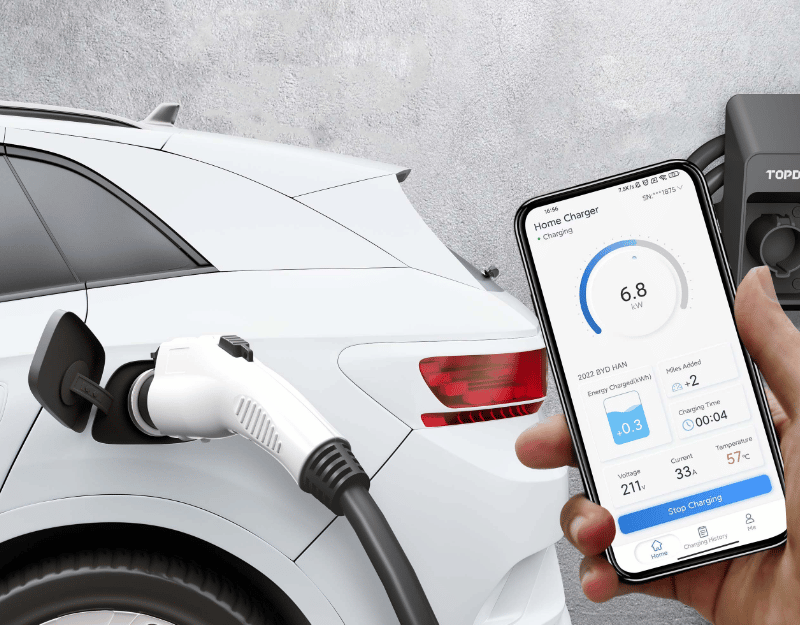

Monitor Your Car’s Charging Process

• Schedule Charging Times
• Check Charging Miles and Cost
• Customize Your Charging Process and Current

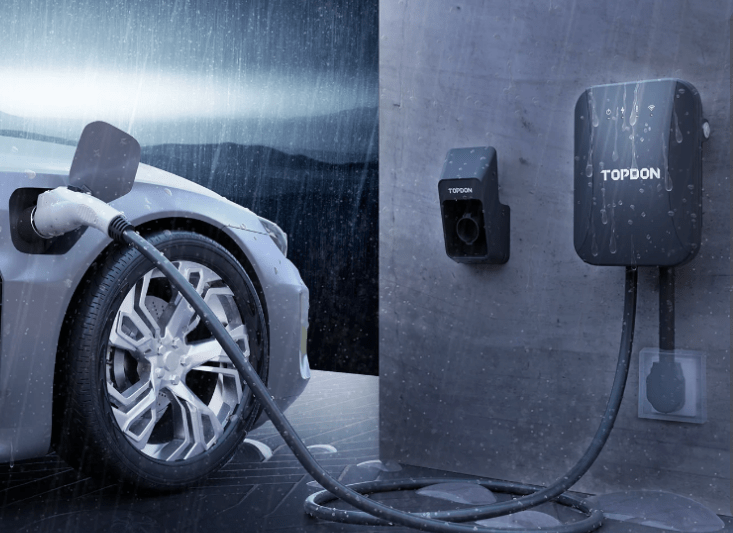

Built To Last
Made with flame-retardant materials, this charging unit has the ability to operate in environments of -30℃ to 55℃, and in 95% humidity. It’s water resistant and has an estimated 10,000 use life cycle.

Safety Above Everything
The PulseQ EV Charger has been equipped with multiple safety protection features to ensure the charger is safe for use in any scenario, including Under Voltage protection, Over Voltage protection, Overload protection, Over-Temp protection, Short Circuit protection, Ground protection, Earth Leakage Protection (CCID 20), and Lightning protection.

Rugged Charging Cable
The PulseQ EV Charger comes with a rugged charging cable made of PVC and copper, which can accommodate up to 40A. This 5 meter cable allows maximum flexibility in use (25ft extendable option). The charger can be saved in the socket when not in use, and you can coil the charging cable and hang it over the socket for storage.

Great Value For Money
The PulseQ App allows your vehicles to be charged during off-peak periods by allowing you to set charging times, saving money on electricity bills. You can also check the price difference between oil and electricity on the App. Adjustable current range from 6 to 40A (1A Precision) and SAE J1772 (TYPE1) connector enable this charger to power most electric vehicles on the road, making it an excellent investment.

Technical Specifications:

• Charger: IEC 62196-2 Type 2
• Certification: CE, LVD, RED, RoHS, REACH
• Charging Mode: App Controlled/Plug And Play/RFID Mode

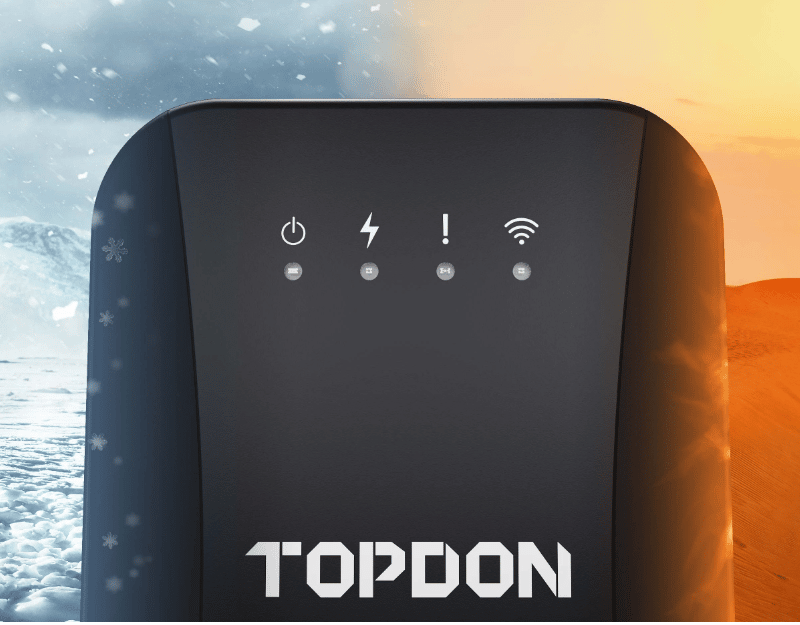

• Indicator lights: 4 LED Lights: standby, charging, fault, and network
• Voltage: 230 VAC, 1 Phase
• Current: 32 A
• Frequency: 50/60 Hz
• Connector type: Type 2
• Working Temperature: -22 ~ 131℉ (-30 ~ 55℃)
• Weight: 15-17 lbs. (7-8 kg)
• Cable length: 5 meters
• Dimension: 310x215x95mm
