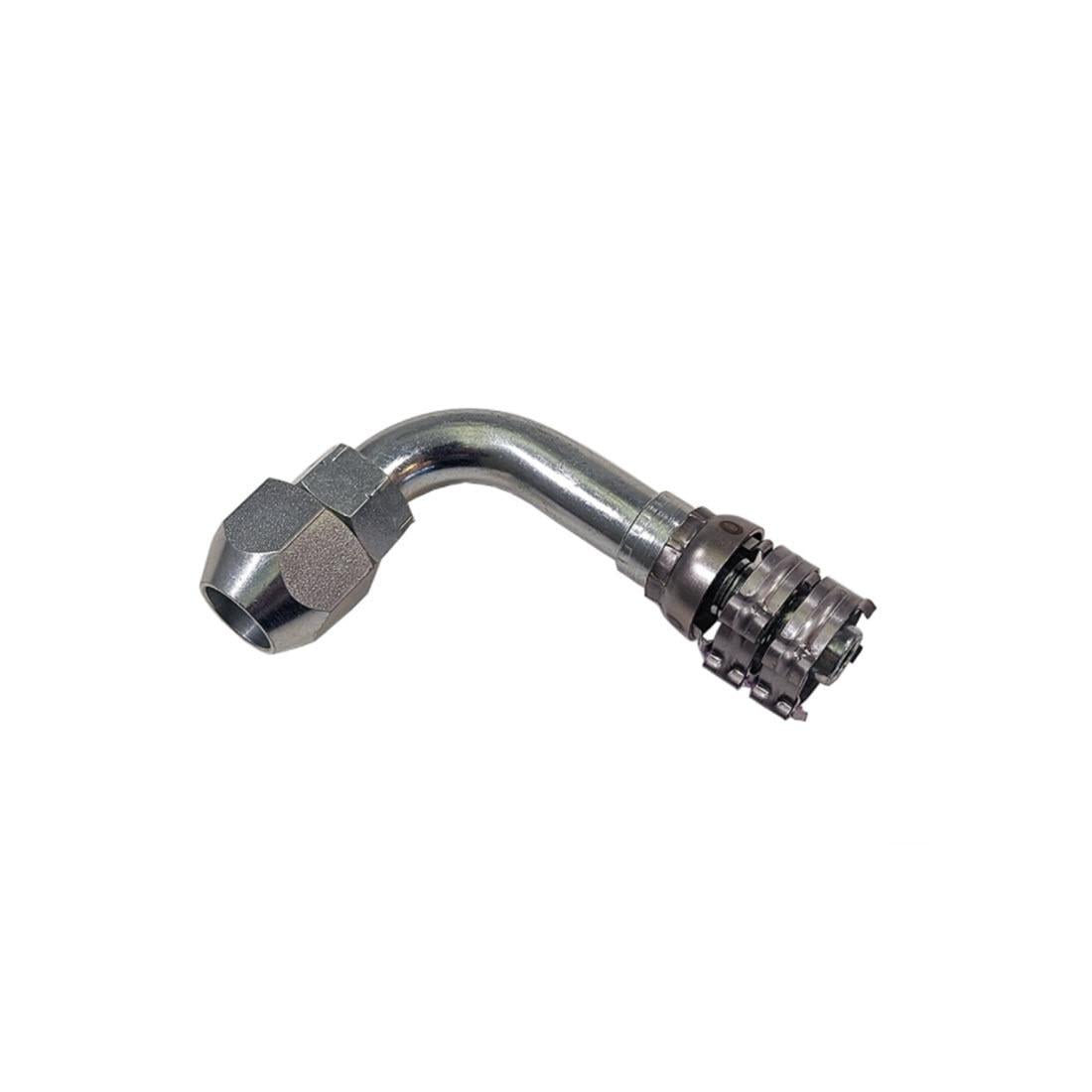

KlimaKlamp 90 Degree Clip Fitting 10-10

Product Description

KlimaKlamp 90 Degree Clip Fitting 10-10

Works with size dash 10 hose = (13mm + or – 0.3mm internal diameter) and 15.8mm to 16mm Aluminium pipe size

Used to join vehicles original aluminium pipe to KlimaKlamp FG100 hose allowing you to repair AC hoses and pipes

• For use with KlimaKlamp hose repair system (or any other suitable hose that has the same wall thickness)

The below chart explains the sizes
The hose size inner diameter listed below is showing the size of FG100 rubber AC hose (or equivalent) that goes onto the male push on part of the fitting
The pipe size outer diameter listed below is showing the size of the outer diameter of the aluminium pipe that the female part of fitting can connect to
